"Since its founding in 1924, Mayekawa has focused on the development of freezing and cooling technology.Our technology began with cooling applications and we developed various components such as compressors, heat engineering devices and unmanned systems. Today we are moving into food processing, automation robotics and chemical plant equipment fields in both the domestic and international arenas"

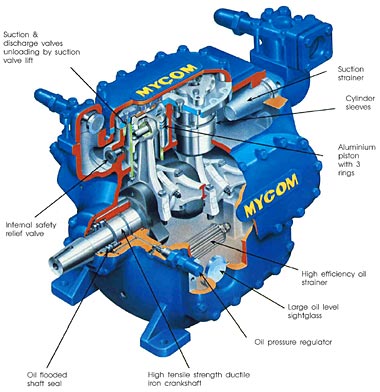

The MYCOM "K" series compressor and units are another addition to the family of world-renowned MYCOM reciprocating refrigeration equipment. These halocarbon compressors are powerful, industrial quality, and designed specifically for use with R-22 and the newer ozone friendly refrigerants. This equipment is competitively priced and suitable for both industrial and commercial applications, insuring dependability, long life and low running and maintenance costs.


HI-QUALITY
Manufactured at our modern plant under the highest level of quality control.

COMPACT
Lighter and smaller than any other compressors of its type. All "K" series and units will fit through a standard doorway (36" x 80")

SAVE ENERGY
Hydraulically operated multistep unloading system for precise control and energy efficient operation.

FOR A BETTER ENVIRONMENT
Designed specifically for use with R-22 AND R-134A and other environmentally safe refrigerants to reduce ozone depletion.


  BARE COMPRESSORS

Model 4K 6K 8K
Type Open type reciprocating
No. of cylinder 4 6 8
Max speed (rpm) 1800
Displacement at max rpm (m3/hr) 159.3 239.0 318.6
Capacity loading steps
                               % 		100.75
50.25		 100.88
66.50
33.00		 100.75
50.25
Oil charge (liter) 9 9 10
Suction value (mm) 50 65 80
Discharge value (mm) 40 50 65
Net weight (Kg)

250

 280 300

ITEMS INCLUDED
• Compressor • Suction & discharge stop valves • Capacity control solenoid valves • Internal pressure relief valve • Suction & oil sump strainers

OPTIONS
• Coupling (direct drive) • Flywheel (belt drive) • Crankcase heater • MYPRO- K microprocessor control panel with pressure transducers • Oil separator • Oil return kit • DX oil cooler kit • Hand tool kit

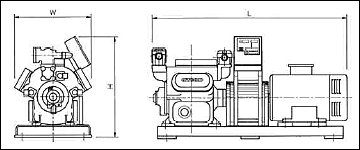

Model L W H A B C D E
4K 714 575 588 230 200 210 206 173
6K 723 636 625 230 200 210 206 173
8K 763 658 666 250 200 210 230 173

  COMPRESSOR UNITS
  Direct Drive

Model Dimensions (mm) Weight
(Kg)
L W H
4K 1580 575 810 395
6K 1790 636 810 425
8K 1815 658 810 445

Download K-Series Brochure (560Kb)
